2020CAM Express Level
General
The EyeCase system is the most advanced portable solution in the 2020CAM family. Offering a single or dual-cam configuration, and support for ultra high frame rates with a SoloCam head, the EyeCase is a powerful solution which puts everything in one easy, transportable, rolling briefcase.
What is it?
- Portable 2020CAM Solution
- Dimension: 22″(L) x 9″(W) x 14.5″(H)
- Supports two simultaneously recording MultiCams or a single SoloCam
- SoloCam Capable
- ATA Carry On Luggage compliant for all major carriers
- Multiple Frame Rate and Video Buffer Configurations
- Everything In One Box
- Wired and Wireless Options
- Manual or Remote Controlled lens configurations
Software
EyeCase uses our 20/20 Hindsight Connect app which offers full support across Windows, Apple, and Android devices. See software for more details.
- Full support on desktops and laptops
- Optimized for tablets and phone screens
- Convert and save Hindsight clips direct to camera roll for easy sharing
- Optimized touch interface
- Full-featured Hindsight client for Windows, iOS, and Android
See full details here.
The 20/20 Hindsight Connect app for all devices offers all the full features you need including frame-by-frame stepping, clip saving and downloading, folders organization, and video clip sharing right to your device’s photo library.
Features
- Portable Solution – Provides troubleshooting in a rugged, portable case that is made for easy storage and transport. Designed with specs for easy airline travel.
- Rugged, Industrial Design – Hindsight 2020CAM is engineered from the ground up to withstand even the harshest factory environments. From moisture to extreme temperatures, 2020CAM’s sealed exterior can reliably function regardless of where you put it. With options available including aseptic camera heads, 2020CAM can meet your particular industry’s needs.
- Industry-leading, Continuous Recording Memory – With hours of recording time, Hindsight 2020CAM high speed camera systems have the unique ability to continue capturing events even while you review previously recorded video. Hindsight 20/20 features full-duplex, continuous memory buffers measured in hours (versus seconds), our high speed camera system records over multiple shifts, lunch breaks, and meetings.
- Ultra-High Frame Rates – EyeCase has the capability to record anywhere from 125 to 10,000 images per second (depending on camera options), capturing high quality video for any line speeds.
- Quick setup and Simple, Intuitive Interface – Our industrial video camera systems allow operators of all skill levels to capture high-quality video for use in quick decision-making and corrective action implementation.
- Portability – Hindsight 2020CAM’s portability and operator-friendly features make high speed video accessible plant-wide.
- High Sensitivity to Light – Our lighting options & light-sensitive cameras allow users to capture high quality video with one-tenth the light of other systems, are cool to the touch and nearly impossible to break.
- Networking Capability – EyeCase makes it easy to troubleshoot instantly from a remote location with the ability to stream live video over a LAN or WiFi – enabling immediate remote support from OEMs, corporate engineering, and anywhere within the plant network.
Cameras
The MultiCart system supports multiple MultiCam cameras or a single SoloCam camera. Each camera supports manually controlled or remote controlled lens options.
MultiCam
- MultiCam enables operators to troubleshoot multiple processes simultaneously with up to 6 camera views on one system
- A MultiCam system is Power Over Ethernet (PoE) compatible and supports the Micro Four Thirds (MFT) lens standard
- Frame rates from 125 to 2,000 frames per second
- Resolution up to 1280×1022
SoloCam
- The SoloCam offers the highest frame rates available in a monochrome or color option
- Monochrome frame rates from 250 to 1,800 frames per second.
- Color frame rates from 150 to 600 frames per second
- Resolution up to 1280×1024
- Higher frame rates available with Region-Of-Interest option
Specs
Recording Time
More resolution and frame rate configurations are available to achieve up to 10,000 frames per second.
| EyeCase SoloCam Monochrome Duration in Hours | |||
|---|---|---|---|
| 1280×1024 Resolution* | Buffer Size | ||
| Frames Per Second | 320 GB | 480 GB | 2 TB |
| 125 | 11.2 | 15 | 54 |
| 250 | 5.6 | 7.5 | 27 |
| 490 | 2.9 | 3.8 | 13 |
| EyeCase SoloCam Monochrome Duration in Hours | |||
|---|---|---|---|
| 640×480 Resolution* | Buffer Size | ||
| Frames Per Second | 320 GB | 480 GB | 2 TB |
| 125 | 48 | 64 | 230 |
| 250 | 24 | 32 | 115 |
| 500 | 12 | 16 | 57 |
| 1000 | 6 | 8 | 28 |
| 1800 | 3.3 | 4.45 | 16 |
| EyeCase SoloCam Color Duration in Hours | |||
|---|---|---|---|
| 640×480 Resolution* | Buffer Size | ||
| Frames Per Second | 320 GB | 480 GB | 2 TB |
| 150 | 24 | 32 | 153 |
| 300 | 12 | 16 | 76 |
| 600 | 6 | 8 | 38 |
*Recording times are approximate and will vary based on resolution, number of cameras, and frame rate

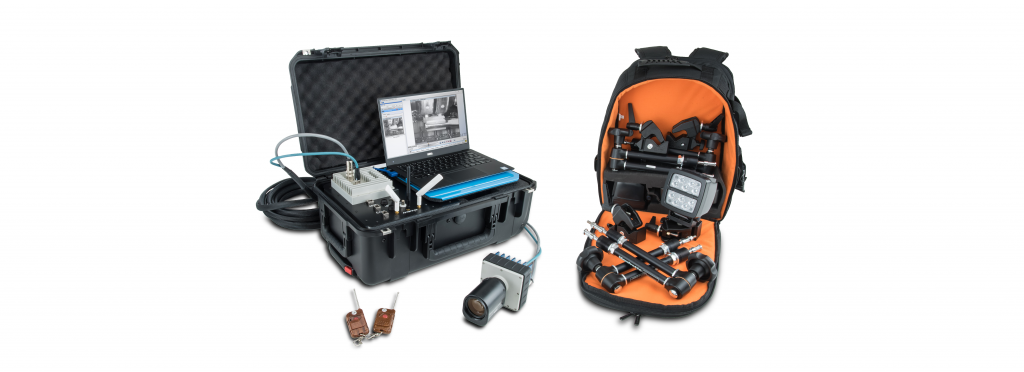

EyeCase Portable System
- Travel suitcase option to be used in lieu of kiosk or Pelican Case
- Self-contained laptop & camera(s)
- Meets TSA-approved carry-on size for major airlines
- Small footprint – perfect for traveling from plant to plant
- Dedicated custom foam-lined storage area for cameras, lenses, and accessories
- Easy access connection panel for camera and LED light hook-ups
- Optional wireless connectivity
- Pad-lock ready for added security
- Simple setup – start capturing video in minutes!
Lenses
- 11.5-69mm manual
- 90mm macro
- 11-130mm macro
- 75mm fixed magnification
- 4.4-11mm wide angle
- Panasonic 14-42mm MFT lens
Environment
- Camera: IP65 or IP67 (NEMA4), with optional waterproof or stainless steel lens cover / ex-proof enclosure
- Temperature operating: 20 to 122 ºF (-7 to 50 ºC)
- Storage: -40 to 150 ºF (-40 to 65 ºC)
- Humidity: 20% to 80% relative humidity (non-condensing)
- Vibration/Shock: 7 Grms (10Hz to 2000Hz) / 70G, 11ms, half-sine
- Max allowable ambient temp is decreased 3 ºF (1.6 ºC) for each 1,000 feet (300 m) over 2,460 feet (750 m) above mean sea level
Options
Waterproof
- Optional waterproof lens cover for wet, damp or dirty environments
Event Trigger Interface
- Process Interface Unit (PIU) allows remote trigger capture of line events
- Connect to Programmable Logic Controller (PLC) and automatically save portions of video from the continuous recording buffer based on line faults and conditions
- Wireless key fob
